General Description
    Orange Pi 5B uses Rockchip RK3588S new generation 8-core 64-bit processor, quad-core A76+quad-core A55, with 8nm process design, up to 2.4GHz main frequency, integrated ARM Mali-G610 GPU, embedded high-performance 3D/2D image acceleration module, built-in NPU with 6Tops computing power, with 4GB/8GB/16GB/32GB (LPDDR4/4x) and 32GB/64GB/128GB/256GB eMMC, with dual-band Wi-Fi6, BT5.0, and up to 8K display processing capability.
   Orange Pi 5B provides abundant interfaces, including HDMI output, GPIO interface, Type-C, Gigabit LAN port, 2*USB2.0, 1*USB3.0, etc.; It can be widely used in tablets, edge computing, artificial intelligence, cloud computing, AR/VR, intelligent security, smart home and other fields, covering AIoT various industries.
Orange Pi 5B supports Orangepi OS, the official operating system developed by Orange Pi, as well as Android12 and Debian11，Ubuntu22.04，Ubuntu20.04 .


Features

General Parameters

Dimension	100mmL*62mmW*17mmH
Connection Mode	Board To Board
CPU	• 8-core 64-bit processor • Big.Little Architecture: 4 * Cortex-A76 and 4 * Cortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency.
GPU	Mali-G610
Memory	4GB/8GB/16GB/32GB（LPDDR4/4x）
Storage	• 32GB/64GB/128GB/256GB eMMC • MicroSD (TF) Card Slot
Power Management	RK806-1
Supply Voltage	5.0V 4A
Operating System	Orangepi OS（Droid）、Orangepi OS（Arch）、Debian11、Ubuntu22.04、Ubuntu20.04、Android12
Operating Temperature	-10°C to +75°C

Absolute Maximum Ratings

Electrical Characteristics

Functional Block Diagram

SoC	Rockchip RK3588S (8nm LP process)
CPU	• 8-core 64-bit processor
	• Big.Little Architecture: 4 * Cortex-A76 and 4 * Cortex-A55, Big core cluster is 2.4GHz, and Little core cluster is 1.8GHz frequency.
GPU	• Arm Mali-G610 MP4
	• Compatible with OpenGL ES1.1/2.0/3.2, OpenCL 2.2 and Vulkan 1.2
	• 3D graphics engine and 2D graphics engine
NPU	Built-in AI accelerator NPU with up to 6 TOPS, supports INT4/INT8/INT16 mixed operation
PMU	RK806-1
RAM	4GB/8GB/16GB/32GB（LPDDR4/4x）
Memory	• 32GB/64GB/128GB/256GB eMMC
	• MicroSD (TF) Card Slot
USB	USB3.1 * 1
	USB2.0 * 2
	Type-C (USB3.1) * 1
Video Output	• HDMI2.1, up to 8K@60Hz
	• DP1.4 (DisplayPort), maximum output resolution up to 8K@30Hz
	• 2 * MIPI D-PHY TX 4Lane, configurable up to 4K @60Hz
Camera	• MIPI CSI 4Lane
	• 2 * MIPI D-PHY RX 4Lane
Audio	CODEC: ES8388
	• 3.5mm headphone jack audio input/output
	• Input: Onboard MIC
	• HDMI 2.1 eARC
Ethernet	10/100/1000Mbps Ethernet
Expansion Port	For extending UART, PWM, I2C, SPI, CAN and GPIO interfaces
Wi-Fi, BT module	On-board Wi-Fi6+BT 5.0 module, Wi-Fi6 interface: PCIe, BT interface: PCM+UART
Button	1 * MaskROM key
	1 * Recovery key
	1 * On/Off key
Power Source	Support Type-C power supply, 5V@4A
LED	Power indicator: red
	Status indicator: green
Debugging	3 Pin debug serial port (UART)
Supported OS	Orangepi OS（Droid）、Orangepi OS（Arch）、Debian11、Ubuntu22.04、Ubuntu20.04、Android12

Interface Description

Functional Pin Description


Key IC
    Rockchip RK3588S

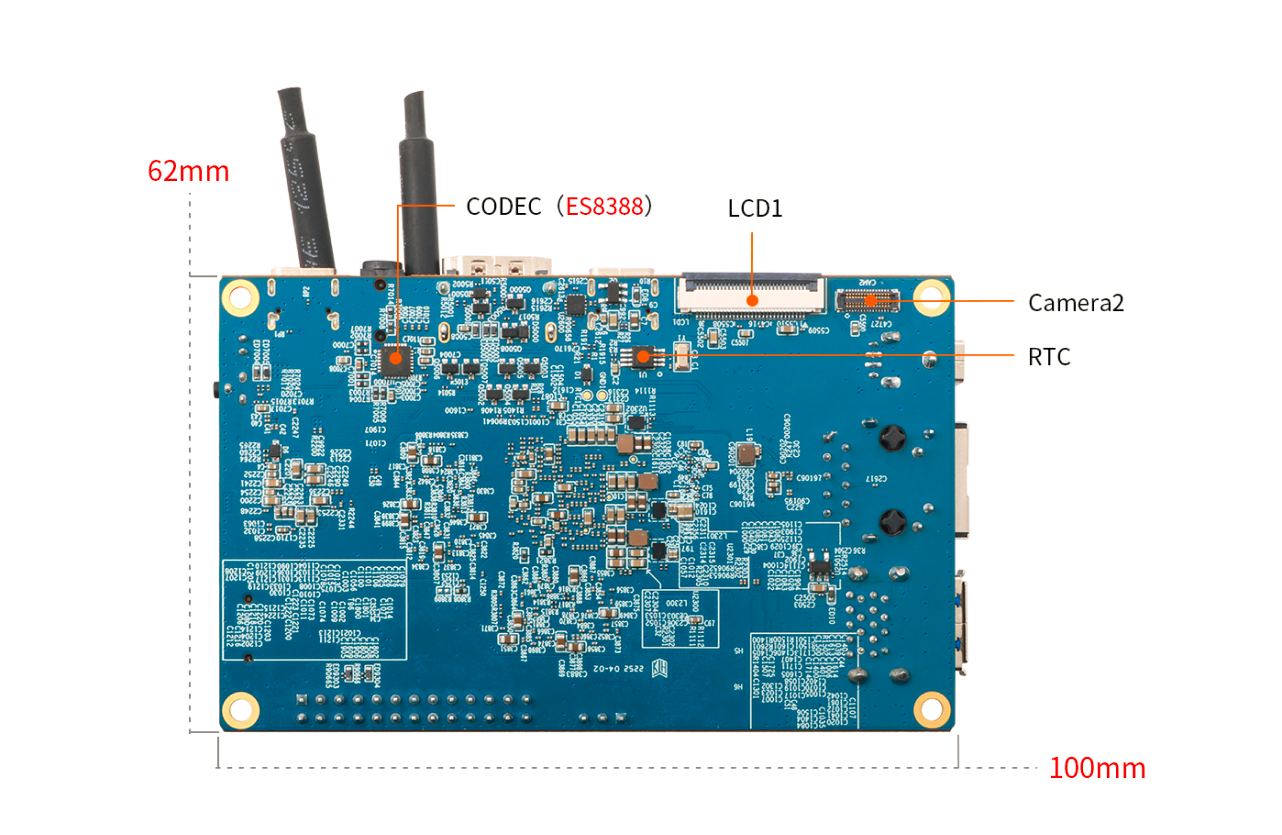

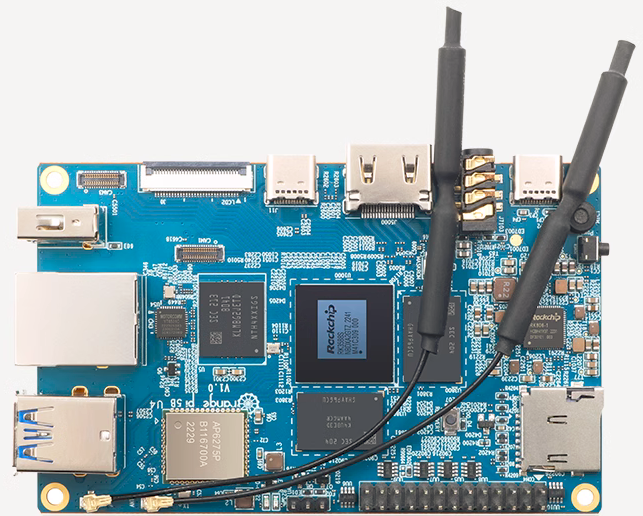

Appearance And Structure
