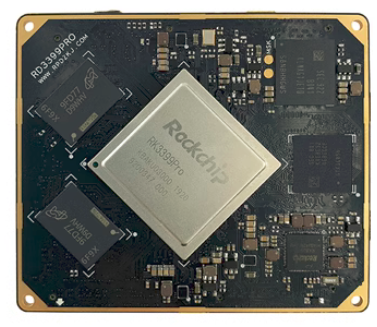

General Description
Features
General Parameters
| Dimension | 70mmL x 60mmW x 5.2mmH |
| CPU | Rockchip RK3399pro Hexa-core 1.8GHz |
| NPU | 3.0TOPs |
| GPU | Mali-T860 MP4 GPU |
| CPU Memory | LDDR4 2G（4G Optional) |
| NPU Memory | LDDR3 1G（2G Optional) |
| Storage | eMMC 16G（8G/32G/64G Optional) |
| Power Management | RK809-3 |
| Supply Voltage |
5V 2A |
| Operating System | Android 9.0/Linux+QT5.9/ Ubuntu16.04/Debian9/Fedora28 |
| Operating Temperature | -10°C to +75°C |
Absolute Maximum Ratings
| Supply Input Voltage range | 4.8V to 5.2 V |
| Input voltage | -0.3V to VDD+0.3V |
| Lead Temperature | 260℃ |
| Storage Temperature Range | −30℃ to 80℃ |
| Operation Junction Temperature Range | |
| Operation Ambient Temperature Range | −10℃ to 75℃ |
| Maximum Junction Temperature Range | |
| Maximum Power Dissipation (PD,TA<40°C) | 15W |
| Thermal resistance (junction to ambient) | 45℃/W |
Electrical Characteristics
Functional Block Diagram
Interface Description
| USB | 2 x USB3.0，2 x USB2.0 |
| UART | 5 x TTL 3.3V |
| GPIO | 40 x GPIO |
| PWM | 3 x PWM 3.3V |
| MIPI DSI | 2 x MIPI DSI |
| eDP | 1 x eDP1.3 4Wire 10.8Gbps |
| HDMI | 1 x HDMI Output, Support 1920x1080 1080P 60fps |
|
DVP CSI |
1 x 8bit DVP Camera |
|
MIPI CSI |
2 x MIPI CSI With Tow SPI, Support 13MPix/s |
|
Audio Output |
1 x Stereo |
| MIC |
1 x MIC |
| SDIO |
2 x SDIO，One For Tf Card, One For Wifi |
| IR |
1 x IR |
| ADC | 6 x ADC |
| I2C | 5 x I2C |
| SPI | 4 x SPI |
| Internet | 1 x GMAC PHY |
| I2S |
1 x I2S With 8 Channels |
| PCIE | 1 x PCIe2.0 4full-duplex lanes |
|
POWER OUTPUT |
1.8V 2.8V 3.3V |
Functional Pin Description
| Pin | Name | IO Voltage | Default Function | Multiplex Function |
| J1-1 | BT_HOST_WAKE_L | 1V8 | BT PART | EMMC_PWRON/GPIO0_A5_u |
| J1-2 | BT_WAKE_L | 1V8 | BT PART | SDIO0_DETN/PCIE_CLKREQN/GPIO2_D2_u |
| J1-3 | UART0_RTS_BT | 1V8 | BT PART | UART0_RTSN/GPIO2_C3_u |
| J1-4 | UART0_CTS_BT | 1V8 | BT PART | UART0_CTSN/GPIO2_C2_u |
| J1-5 | UART0_TXD_BT | 1V8 | BT PART | UART0_TX/GPIO2_C1_u |
| J1-6 | UART0_RXD_BT | 1V8 | BT PART | UART0_RX/GPIO2_C0_u |
| J1-7 | BT_REG_ON_H | 1V8 | BT PART | SDIO0_BKPWR/GPIO2_D4_d |
| J1-8 | SDIO0_D1 | 1V8 | WIFI PART | SDIO0_D1/SPI5_TXD/GPIO2_C5_u |
| J1-9 | SDIO0_D0 | 1V8 | WIFI PART | SDIO0_D0/SPI5_RXD/GPIO2_C4_u |
| J1-10 | SDIO0_D2 | 1V8 | WIFI PART | SDIO0_D2/SPI5_CLK/GPIO2_C6_u |
| J1-11 | SDIO0_D3 | 1V8 | WIFI PART | SDIO0_D3/SPI5_CSN0/GPIO2_C7_u |
| J1-12 | SDIO0_CLK | 1V8 | WIFI PART | SDIO0_CLKOUT/TEST_CLKOUT1/GPIO2_D1_u |
| J1-13 | SDIO0_CMD | 1V8 | WIFI PART | SDIO0_CMD/GPIO2_D0_u |
| J1-14 | WIFI_HOST_WAKE_L | 1V8 | WIFI PART | SDIO0_WRPT/GPIO0_A3_d |
| J1-15 | WIFI_REG_ON_H | 1V8 | WIFI PART | SDIO0_PWREN/GPIO2_D3_d |
| J1-16 | I2S0_SDO0 | 1V8 | CONNNECT TO OUTSIDE | I2S0_SDO0/GPIO3_D7_d |
| J1-17 | I2S0_SDO1 | 1V8 | CONNNECT TO OUTSIDE | I2S0_SDI3SDO1/GPIO3_D6_d |
| J1-18 | I2S0_SDO2 | 1V8 | CONNNECT TO OUTSIDE | I2S0_SDI2SDO2/GPIO3_D5_d |
| J1-19 | I2S0_SDO3 | 1V8 | CONNNECT TO OUTSIDE | I2S0_SDI1SDO3/GPIO3_D4_d |
| J1-20 | I2S0_SDI0 | 1V8 | CONNNECT TO OUTSIDE | I2S0_SDI0/GPIO3_D3_d |
| J1-21 | I2S0_LRCK_TX | 1V8 | CONNNECT TO OUTSIDE | I2S0_LRCK_TX/GPIO3_D2_d |
| J1-22 | I2S0_LRCK_RX | 1V8 | CONNNECT TO OUTSIDE | I2S0_LRCK_RX/GPIO3_D1_d |
| J1-23 | I2S0_SCLK | 1V8 | CONNNECT TO OUTSIDE | I2S0_SCLK/GPIO3_D0_d |
| J1-24 | MIPI_TX0_CLKN | DISPLAY | ||
| J1-25 | MIPI_TX0_CLKP | DISPLAY | ||
| J1-26 | MIPI_TX0_D0N | DISPLAY | ||
| J1-27 | MIPI_TX0_D0P | DISPLAY | ||
| J1-28 | MIPI_TX0_D1N | DISPLAY | ||
| J1-29 | MIPI_TX0_D1P | DISPLAY | ||
| J1-30 | MIPI_TX0_D2N | DISPLAY | ||
| J1-31 | MIPI_TX0_D2P | DISPLAY | ||
| J1-32 | MIPI_TX0_D3N | DISPLAY | ||
| J1-33 | MIPI_TX0_D3P | DISPLAY | ||
| J1-34 | GND | 0V | GROUND CONNECTING | |
| J1-35 | MIPI_TX1/RX1_D0N | CAMERA INPUT | ||
| J1-36 | MIPI_TX1/RX1_D0P | CAMERA INPUT | ||
| J1-37 | MIPI_TX1/RX1_D1N | CAMERA INPUT | ||
| J1-38 | MIPI_TX1/RX1_D1P | CAMERA INPUT | ||
| J1-39 | MIPI_TX1/RX1_CLKN | CAMERA INPUT | ||
| J1-40 | MIPI_TX1/RX1_CLKP | CAMERA INPUT | ||
| J1-41 | NPU_DVP_VDDIO | INPUT 3V3 | IO VOLTAGE INPUT | DEFAULT 3.3V INPUT, CAN BE CONFIGURED 1.8V |
| J1-42 | NPU_VCC_1V8_S3 | OUT 1V8 | VOLTAGE OUTPUT | |
| J1-43 | NPU_VCCIO_3V3_S3 | OUT 3V3 | VOLTAGE OUTPUT | |
| J1-44 | GND | 0V | GROUND CONNECTING | |
| J1-45 | VCCIO_DVP_S0 | INPUT 3V3 | IO VOLTAGE INPUT | DEFAULT 3.3V INPUT, CAN BE CONFIGURED 1.8V |
| J1-46 | VCC1V8_DVP_S0 | OUT 1V8 | VOLTAGE OUTPUT | |
| J1-47 | VCCIO_3V0_S0 | OUT 3V0 | VOLTAGE OUTPUT | |
| J1-48 | VCC5V0_TYPEC0_EN | 3V0 | SPDIF_TX/GPIO4_C5_d | |
| J1-49 | TYPEC_CC_INT_L | 1V8 | ISP0_FLASHTRIGIN/ISP1_FLASHTRIGIN/GPIO1_A2_d | |
| J1-50 | TYPEC0_U2VBUSDET | ISP0_FLASHTRIGIN/ISP1_FLASHTRIGIN/GPIO1_A2_d | ||
| J1-51 | TYPEC0_SBU2_DC | |||
| J1-52 | TYPEC0_SBU1_DC | |||
| J1-53 | TYPEC0_SBU2 | |||
| J1-54 | TYPEC0_SBU1 | |||
| J1-55 | TYPEC0_DP | |||
| J1-56 | TYPEC0_DM | |||
| J1-57 | TYPEC0_TX1P | |||
| J1-58 | TYPEC0_TX1N | |||
| J1-59 | TYPEC0_RX1N | |||
| J1-60 | TYPEC0_RX1P | |||
| J1-61 | TYPEC0_RX2N | |||
| J1-62 | TYPEC0_RX2P | |||
| J1-63 | TYPEC0_TX2N | |||
| J1-64 | TYPEC0_TX2P | |||
| J1-65 | GND | 0V | GROUND CONNECTING | |
| J1-66 | I2C1_SDA_1V8 | 1V8 | CPU CAMERA | I2C1_SDA/GPIO4_A1_u |
| J1-67 | I2C1_SCL_1V8 | 1V8 | CPU CAMERA | I2C1_SCL/GPIO4_A2_u |
| J1-68 | HDMI_PORT_HPD | 3V0 | ||
| J1-69 | I2C3_SCL_HDMI | 3V0 | I2C3_SCL/UART2B_TX/GPIO4_C1_u | |
| J1-70 | I2C3_SDA_HDMI | 3V0 | I2C3_SDA/UART2B_RX/GPIO4_C0_u | |
| J1-71 | HDMI_CEC | 3V0 | HDMI_CECINOUT/EDP_HOTPLUG/GPIO4_C7_u | |
| J1-72 | GND | 0V | GROUND CONNECTING | |
| J1-73 | HDMI_TXCN | |||
| J1-74 | HDMI_TXCP | |||
| J1-75 | HDMI_TX0N | |||
| J1-76 | HDMI_TX0P | |||
| J1-77 | HDMI_TX1N | |||
| J1-78 | HDMI_TX1P | |||
| J1-79 | HDMI_TX2N | |||
| J1-80 | HDMI_TX2P | |||
| J2-1 | LCD_EN | 3V0 | GPIO4_D6_d | |
| J2-2 | LCD_EN1 | 3V0 | GPIO4_D2_d | |
| J2-3 | LCD_BL_PWM | 3V0 | PWM0/VOP0_PWM/VOP1_PWM/GPIO4_C2_d | |
| J2-4 | PWM1 | 3V0 | PWM1/GPIO4_C6_d | |
| J2-5 | GPIO4_D0 | 3V0 | PCIE_CLKREQNB/GPIO4_D0_u | |
| J2-6 | GPIO4_D3 | 3V0 | EFUSE_VQPS/GPIO4_D3_d | |
| J2-7 | DEBUG_UART2_RX | 3V0 | CPU DEBUG | UART2C_RX/GPIO4_C3_u |
| J2-8 | DEBUG_UART2_TX | 3V0 | CPU DEBUG | UART2C_TX/GPIO4_C4_u |
| J2-9 | DVP_PDN1_H | 3V0 | GPIO4_D4_d | |
| J2-10 | USB20_HUB_RESET | 3V0 | DP_HOTPLUG/GPIO4_D1_d | |
| J2-11 | TOUCH_RST | 3V0 | GPIO4_D5_d | |
| J2-12 | EDP_TX3N | eDP DISPLAY OUTPUT | ||
| J2-13 | EDP_TX3P | eDP DISPLAY OUTPUT | ||
| J2-14 | EDP_TX2N | eDP DISPLAY OUTPUT | ||
| J2-15 | EDP_TX2P | eDP DISPLAY OUTPUT | ||
| J2-16 | EDP_TX1N | eDP DISPLAY OUTPUT | ||
| J2-17 | EDP_TX1P | eDP DISPLAY OUTPUT | ||
| J2-18 | EDP_TX0N | eDP DISPLAY OUTPUT | ||
| J2-19 | EDP_TX0P | eDP DISPLAY OUTPUT | ||
| J2-20 | EDP_AUXN | eDP DISPLAY OUTPUT | ||
| J2-21 | EDP_AUXP | eDP DISPLAY OUTPUT | ||
| J2-22 | CIF_D0/GPIO2_A0_U | 3V0 | I2C2_SDA/VOP_D0/CIF_D0/GPIO2_A0_u | |
| J2-23 | CIF_D1/GPIO2_A1_U | 3V0 | I2C2_SCL/VOP_D1/CIF_D1/GPIO2_A1_u | |
| J2-24 | CIF_D2/GPIO2_A2_D | 3V0 | VOP_D2/CIF_D2/GPIO2_A2_d | |
| J2-25 | CIF_D3/GPIO2_A3_D | 3V0 | VOP_D3/CIF_D3/GPIO2_A3_d | |
| J2-26 | CIF_D4/GPIO2_A4_D | 3V0 | VOP_D4/CIF_D4/GPIO2_A4_d | |
| J2-27 | CIF_D5/GPIO2_A5_D | 3V0 | VOP_D5/CIF_D5/GPIO2_A5_d | |
| J2-28 | CIF_D6/GPIO2_A6_D | 3V0 | VOP_D6/CIF_D6/GPIO2_A6_d | |
| J2-29 | CIF_D7/GPIO2_A7_D | 3V0 | I2C7_SDA/VOP_D7/CIF_D7/GPIO2_A7_u | |
| J2-30 | GPIO2_B0_U | 3V0 | I2C7_SCL/VOP_CLK/CIF_VSYNC/GPIO2_B0_u | |
| J2-31 | SPI2_RXD | 3V0 | I2C6_SDA/SPI2_RXD/CIF_HREF/GPIO2_B1_u | |
| J2-32 | SPI2_TXD | 3V0 | I2C6_SCL/SPI2_TXD/CIF_CLKIN/GPIO2_B2_u | |
| J2-33 | SPI2_CLK | 3V0 | SPI2_CLK/VOP_DEN/CIF_CLKOUTA/GPIO2_B3_u | |
| J2-34 | SPI2_CSN0 | 3V0 | SPI2_CSN0/GPIO2_B4_u | |
| J2-35 | ADC0 | 1V8 | ADC0 | |
| J2-36 | ADC1 | 1V8 | ADC1 | |
| J2-37 | ADC2_KEY_IN | 1V8 | ADC2 | |
| J2-38 | ADC3_HP_HOOK | 1V8 | ADC3 | |
| J2-39 | ADC4 | 1V8 | ADC4 | |
| J2-40 | ADC5 | 1V8 | ADC5 | |
| J2-41 | NPU_SLEEP_STATUS_DET | 1V8 | ISP0_FLASHTRIGOUT/ISP1_FLASHTRIGOUT/GPIO1_A3_d | |
| J2-42 | CPU_RST_NPU_L | 1V8 | ISP0_SHUTTER_EN/ISP1_SHUTTER_EN/GPIO1_A0_d | |
| J2-43 | GND | 0V | GROUND CONNECTING | |
| J2-44 | CLKOUT_32K | 1V8 | TEST_CLKOUT0/CLK32K_IN/GPIO0_A0_u | |
| J2-45 | PHONE_DET_H | 1V8 | GPIO0_B5_d | |
| J2-46 | IR_RX | 1V8 | PWM3A_IR/GPIO0_A6_d | |
| J2-47 | GPIO0_B4_U | 1V8 | GPIO0_B4_d | |
| J2-48 | GPIO0_B1_U | 1V8 | PMUIO2_VOLSEL/GPIO0_B1_d | |
| J2-49 | GPIO0_B0_U | 1V8 | SDMMC0_WRPT/TEST_CLKOUT2/GPIO0_B0_u | |
| J2-50 | CAM_RST_L | 1V8 | DDRIO_PWROFF/GPIO0_A1_u | |
| J2-51 | TOUCH_INT | 1V8 | SPI1_CSN0/PMCU_JTAG_TMS/GPIO1_B2_u | |
| J2-52 | DVP_PDN0_H | 1V8 | SPI1_CLK/PMCU_JTAG_TCK/GPIO1_B1_u | |
| J2-53 | I2C4_SDA | 1V8 | I2C4_SDA/GPIO1_B3_u | |
| J2-54 | I2C4_SCL | 1V8 | I2C4_SCL/GPIO1_B4_u | |
| J2-55 | UART4_TX | 1V8 | SPI1_TXD/UART4_TX/GPIO1_B0_u | |
| J2-56 | UART4_RX | 1V8 | SPI1_RXD/UART4_RX/GPIO1_A7_u | |
| J2-57 | I2C8_SDA_CC | 1V8 | I2C8_SDA/GPIO1_C4_u | |
| J2-58 | I2C8_SCL_CC | 1V8 | I2C8_SCL/GPIO1_C5_u | |
| J2-59 | LCD_RST_L | 1V8 | ISP0_SHUTTER_TRIG/ISP1_SHUTTER_TRIG/GPIO1_A1_d | |
| J2-60 | USB5V0_EN_H | 1V8 | GPIO1_B5_d | |
| J2-61 | GND | 0V | GROUND CONNECTING | |
| J2-62 | MAC_CLK | 3V3 | INTERNET PHY | MAC_CLK/I2C5_SCL/GPIO3_B3_u |
| J2-63 | PHY_INT | 3V3 | INTERNET PHY | MAC_COL/UART3_CTSN/SPDIF_TX/GPIO3_C0_u |
| J2-64 | MAC_RXCLK | 3V3 | INTERNET PHY | MAC_RXCLK/UART3_RX/GPIO3_B6_u |
| J2-65 | MAC_RXDV | 3V3 | INTERNET PHY | MAC_RXDV/GPIO3_B1_d |
| J2-66 | MAC_RXD0 | 3V3 | INTERNET PHY | MAC_RXD0/SPI0_CLK/GPIO3_A6_u |
| J2-67 | MAC_RXD1 | 3V3 | INTERNET PHY | MAC_RXD1/SPI0_CSN0/GPIO3_A7_u |
| J2-68 | MAC_RXD2 | 3V3 | INTERNET PHY | MAC_RXD2/SPI4_CLK/GPIO3_A2_u |
| J2-69 | MAC_RXD3 | 3V3 | INTERNET PHY | MAC_RXD3/SPI4_CSN0/GPIO3_A3_u |
| J2-70 | PHY_TXCLK | 3V3 | INTERNET PHY | MAC_TXCLK/UART3_RTSN/GPIO3_C1_u |
| J2-71 | PHY_TXEN | 3V3 | INTERNET PHY | MAC_TXEN/UART1_RX/GPIO3_B4_u |
| J2-72 | PHY_TXD0 | 3V3 | INTERNET PHY | MAC_TXD0/SPI0_RXD/GPIO3_A4_d |
| J2-73 | PHY_TXD1 | 3V3 | INTERNET PHY | MAC_TXD1/SPI0_TXD/GPIO3_A5_d |
| J2-74 | PHY_TXD2 | 3V3 | INTERNET PHY | MAC_TXD2/SPI4_RXD/GPIO3_A0_d |
| J2-75 | PHY_TXD3 | 3V3 | INTERNET PHY | MAC_TXD3/SPI4_TXD/GPIO3_A1_d |
| J2-76 | MAC_MDIO | 3V3 | INTERNET PHY | MAC_MDIO/UART1_TX/GPIO3_B5_u |
| J2-77 | MAC_MDCLK | 3V3 | INTERNET PHY | MAC_MDC/SPI0_CSN1/GPIO3_B0_u |
| J2-78 | PHY_RST | 3V3 | INTERNET PHY | MAC_RXER/I2C5_SDA/GPIO3_B2_u |
| J2-79 | GND | 0V | GROUND CONNECTING | |
| J2-80 | MIPI_MCLK1 | 3V3 | MAC_CRS/UART3_TX/CIF_CLKOUTB/GPIO3_B7_u | |
| J3-1 | MIPI_TX1/RX1_D2N | CAMERA INPUT | ||
| J3-2 | MIPI_TX1/RX1_D2P | CAMERA INPUT | ||
| J3-3 | MIPI_TX1/RX1_D3N | CAMERA INPUT | ||
| J3-4 | MIPI_TX1/RX1_D3P | CAMERA INPUT | ||
| J3-5 | GND | 0V | GROUND CONNECTING | |
| J3-6 | USB30_RX1P | |||
| J3-7 | USB30_RX1M | |||
| J3-8 | USB30_TX1M | |||
| J3-9 | USB30_TX1P | |||
| J3-10 | GND | 0V | GROUND CONNECTING | |
| J3-11 | USB20_OTG1_DM | |||
| J3-12 | USB20_OTG1_DP | |||
| J3-13 | GND | 0V | GROUND CONNECTING | |
| J3-14 | NPU_MIPI_TX_CLKN | NPU DISPLAY OUTPUT | ||
| J3-15 | NPU_MIPI_TX_CLKP | NPU DISPLAY OUTPUT | ||
| J3-16 | NPU_MIPI_TX_D0N | NPU DISPLAY OUTPUT | ||
| J3-17 | NPU_MIPI_TX_D0P | NPU DISPLAY OUTPUT | ||
| J3-18 | NPU_MIPI_TX_D1N | NPU DISPLAY OUTPUT | ||
| J3-19 | NPU_MIPI_TX_D1P | NPU DISPLAY OUTPUT | ||
| J3-20 | NPU_MIPI_TX_D2N | NPU DISPLAY OUTPUT | ||
| J3-21 | NPU_MIPI_TX_D2P | NPU DISPLAY OUTPUT | ||
| J3-22 | NPU_MIPI_TX_D3N | NPU DISPLAY OUTPUT | ||
| J3-23 | NPU_MIPI_TX_D3P | NPU DISPLAY OUTPUT | ||
| J3-24 | GND | 0V | GROUND CONNECTING | |
| J3-25 | HP_SNS | |||
| J3-26 | HPR | |||
| J3-27 | HPL | |||
| J3-28 | GND | 0V | GROUND CONNECTING | |
| J3-29 | MIC2_IN | |||
| J3-30 | MIC1_IN | |||
| J3-31 | GND | 0V | GROUND CONNECTING | |
| J3-32 | SPKN_OUT | |||
| J3-33 | SPKP_OUT | |||
| J3-34 | VCC_RTC_S5 | INPUT 5V | ||
| J3-35 | GND | 0V | GROUND CONNECTING | |
| J3-36 | GND | 0V | GROUND CONNECTING | |
| J3-37 | GND | 0V | GROUND CONNECTING | |
| J3-38 | VCC5V0_SYS_S3 | INPUT 5V | MAIN POWER INPUT | |
| J3-39 | VCC5V0_SYS_S3 | INPUT 5V | MAIN POWER INPUT | |
| J3-40 | VCC5V0_SYS_S3 | INPUT 5V | MAIN POWER INPUT | |
| J3-41 | VCC5V0_SYS_S3 | INPUT 5V | MAIN POWER INPUT | |
| J3-42 | VCC5V0_SYS_S3 | INPUT 5V | MAIN POWER INPUT | |
| J3-43 | VCC5V0_SYS_S3 | INPUT 5V | MAIN POWER INPUT | |
| J3-44 | GND | 0V | GROUND CONNECTING | |
| J3-45 | GND | 0V | GROUND CONNECTING | |
| J3-46 | GND | 0V | GROUND CONNECTING | |
| J3-47 | EXT_EN_H | 3V3 | ||
| J3-48 | VDC_EN | 3V3 | POWER ON ENABLE | |
| J3-49 | KEY_RST | RESET KEY | ||
| J3-50 | KEY_PWR | POWER ON/OFF KEY | ||
| J3-51 | NPU_SPI0-CLK | 3V3 | ||
| J3-52 | NPU_SPI0-CS | 3V3 | ||
| J3-53 | NPU_SPI0-MISO | 3V3 | ||
| J3-54 | NPU_SPI0-MOSI | 3V3 | ||
| J3-55 | NPU_GPIO4_A5 | 3V3 | ||
| J3-56 | NPU_GPIO4_A4 | 3V3 | ||
| J3-57 | NPU_UART2_RX | 3V3 | ||
| J3-58 | NPU_UART2_TX | 3V3 | ||
| J3-59 | GND | 0V | GROUND CONNECTING | |
| J3-60 | NPU_MIPI_RX_D0N | NPUCAMERA INPUT | ||
| J3-61 | NPU_MIPI_RX_D0P | NPUCAMERA INPUT | ||
| J3-62 | NPU_MIPI_RX_D1N | NPUCAMERA INPUT | ||
| J3-63 | NPU_MIPI_RX_D1P | NPUCAMERA INPUT | ||
| J3-64 | NPU_MIPI_RX_CLKN | NPUCAMERA INPUT | ||
| J3-65 | NPU_MIPI_RX_CLKP | NPUCAMERA INPUT | ||
| J3-66 | NPU_MIPI_RX_D2N | NPUCAMERA INPUT | ||
| J3-67 | NPU_MIPI_RX_D2P | NPUCAMERA INPUT | ||
| J3-68 | NPU_MIPI_RX_D3N | NPUCAMERA INPUT | ||
| J3-69 | NPU_MIPI_RX_D3P | NPUCAMERA INPUT | ||
| J3-70 | GND | 0V | GROUND CONNECTING | |
| J3-71 | MIPI_RX0_D0N | CPUCAMERA INPUT | ||
| J3-72 | MIPI_RX0_D0P | CPUCAMERA INPUT | ||
| J3-73 | MIPI_RX0_D1N | CPUCAMERA INPUT | ||
| J3-74 | MIPI_RX0_D1P | CPUCAMERA INPUT | ||
| J3-75 | MIPI_RX0_CLKN | CPUCAMERA INPUT | ||
| J3-76 | MIPI_RX0_CLKP | CPUCAMERA INPUT | ||
| J3-77 | MIPI_RX0_D2N | CPUCAMERA INPUT | ||
| J3-78 | MIPI_RX0_D2P | CPUCAMERA INPUT | ||
| J3-79 | MIPI_RX0_D3N | CPUCAMERA INPUT | ||
| J3-80 | MIPI_RX0_D3P | CPUCAMERA INPUT | ||
| J4-1 | SDMMC0_DET_L | 1V8 | SDMMC0_DET/GPIO0_A7_u | |
| J4-2 | SDMMC0_D1/UART2_TX | 3V0 | SDMMC0_D1/UART2A_TX/GPIO4_B1_u | |
| J4-3 | SDMMC0_D0/UART2_RX | 3V0 | SDMMC0_D0/UART2A_RX/GPIO4_B0_u | |
| J4-4 | SDMMC0_CLK | 3V0 | SDMMC0_CLKOUT/MCUJTAG_TCK/GPIO4_B4_d | |
| J4-5 | VCC3V0_SD_S0 | OUT 3V0 | POWER OUTPUT | |
| J4-6 | SDMMC0_CMD | 3V0 | SDMMC0_CMD/MCUJTAG_TMS/GPIO4_B5_u | |
| J4-7 | SDMMC0_D3/JTAG_TMS | 3V0 | SDMMC0_D3/APJTAG_TMS/GPIO4_B3_u | |
| J4-8 | SDMMC0_D2/JTAG_TCK | 3V0 | SDMMC0_D2/APJTAG_TCK/GPIO4_B2_u | |
| J4-9 | NPU_CIF_D2/GPIO2_A4_D | 3V3 | NPU_CIF_D2/GPIO2_A4_D | |
| J4-10 | NPU_CIF_D3/GPIO2_A5_D | 3V3 | NPU_CIF_D3/GPIO2_A5_D | |
| J4-11 | NPU_CIF_D4/GPIO2_A6_D | 3V3 | NPU_CIF_D4/GPIO2_A6_D | |
| J4-12 | NPU_CIF_D5/GPIO2_A7_D | 3V3 | NPU_CIF_D5/GPIO2_A7_D | |
| J4-13 | NPU_CIF_D6/GPIO2_B0_D | 3V3 | NPU_CIF_D6/GPIO2_B0_D | |
| J4-14 | NPU_CIF_D7/GPIO2_B1_D | 3V3 | NPU_CIF_D7/GPIO2_B1_D | |
| J4-15 | NPU_CIF_D8/GPIO2_B2_D | 3V3 | NPU_CIF_D8/GPIO2_B2_D | |
| J4-16 | NPU_CIF_D9/GPIO2_B3_D | 3V3 | NPU_CIF_D9/GPIO2_B3_D | |
| J4-17 | NPU_CIF_VSYNC/GPIO2_B4_D | 3V3 | NPU_CIF_VSYNC/GPIO2_B4_D | |
| J4-18 | NPU_CIF_HREF/GPIO2_B5_D | 3V3 | NPU_CIF_HREF/GPIO2_B5_D | |
| J4-19 | NPU_CIF_CLKIN/GPIO2_B6_D | 3V3 | NPU_CIF_CLKIN/GPIO2_B6_D | |
| J4-20 | NPU_CIF_CLKOUT/GPIO2_B7_D | 3V3 | NPU_CIF_CLKOUT/GPIO2_B7_D | |
| J4-21 | NPU_CIF_PDN0/GPIO2_C0_D | 3V3 | NPU_CIF_PDN0/GPIO2_C0_D | |
| J4-22 | NPU_CIF_PDN1/GPIO2_C1_D | 3V3 | NPU_CIF_PDN1/GPIO2_C1_D | |
| J4-23 | NPU_CIF_RST/GPIO2_C2_D | 3V3 | NPU_CIF_RST/GPIO2_C2_D | |
| J4-24 | NPU_CIF_PWREN_H/GPIO2_C3_D | 3V3 | NPU_CIF_PWREN_H/GPIO2_C3_D | |
| J4-25 | NPU_I2C3_SCL/GPIO2_D0_D | 3V3 | NPU_I2C3_SCL/GPIO2_D0_D | |
| J4-26 | NPU_I2C3_SDA/GPIO2_D1_D | 3V3 | NPU_I2C3_SDA/GPIO2_D1_D | |
| J4-27 | NPU_GPIO0_A2_1V8 | 1V8 | NPU_GPIO0_A2_d | |
| J4-28 | GND | 0V | GROUND CONNECTING | |
| J4-29 | HOST1_DP | |||
| J4-30 | HOST1_DM | |||
| J4-31 | HOST0_DM | |||
| J4-32 | HOST0_DP | |||
| J4-33 | GND | 0V | GROUND CONNECTING | |
| J4-34 | NPU_OTG_ID | |||
| J4-35 | NPU_OTG_DP | |||
| J4-36 | NPU_OTG_DM | |||
| J4-37 | NPU_OTG_VBUS | |||
| J4-38 | GND | 0V | GROUND CONNECTING | |
| J4-39 | 0V | GROUND CONNECTING | ||
| J4-40 | VCC_1V8_S3 | OUT 1V8 | POWER OUTPUT | |
| J4-41 | GND | 0V | GROUND CONNECTING | |
| J4-42 | VCC3V3_SYS_S3 | OUT 3V3 | POWER OUTPUT | |
| J4-43 | VCC_1V8_S0 | OUT 1V8 | POWER OUTPUT | |
| J4-44 | VCCIO_3V3_S0 | OUT 3V3 | POWER OUTPUT | |
| J4-45 | NPU_PCIE_RX1P | NPU PCIE | ||
| J4-46 | NPU_PCIE_RX1N | NPU PCIE | ||
| J4-47 | NPU_PCIE_TX1P | NPU PCIE | ||
| J4-48 | NPU_PCIE_TX1N | NPU PCIE | ||
| J4-49 | NPU_PCIE_RX0P | NPU PCIE | ||
| J4-50 | NPU_PCIE_RX0N | NPU PCIE | ||
| J4-51 | NPU_PCIE_TX0P | NPU PCIE | ||
| J4-52 | NPU_PCIE_TX0N | NPU PCIE | ||
| J4-53 | NPU_PCIE_CLKP | NPU PCIE | ||
| J4-54 | NPU_PCIE_CLKN | NPU PCIE | ||
| J4-55 | GND | 0V | GROUND CONNECTING | |
| J4-56 | PCIE_REF_CLKN | CPU PCIE | ||
| J4-57 | PCIE_REF_CLKP | CPU PCIE | ||
| J4-58 | PCIE_RX0_N | CPU PCIE | ||
| J4-59 | PCIE_RX0_P | CPU PCIE | ||
| J4-60 | PCIE_TX0N | CPU PCIE | ||
| J4-61 | PCIE_TX0P | CPU PCIE | ||
| J4-62 | PCIE_RX1_N | CPU PCIE | ||
| J4-63 | PCIE_RX1_P | CPU PCIE | ||
| J4-64 | PCIE_TX1N | CPU PCIE | ||
| J4-65 | PCIE_TX1P | CPU PCIE | ||
| J4-66 | PCIE_RX2_N | CPU PCIE | ||
| J4-67 | PCIE_RX2_P | CPU PCIE | ||
| J4-68 | PCIE_TX2N | CPU PCIE | ||
| J4-69 | PCIE_TX2P | CPU PCIE | ||
| J4-70 | PCIE_RX3_N | CPU PCIE | ||
| J4-71 | PCIE_RX3_P | CPU PCIE | ||
| J4-72 | PCIE_TX3N | CPU PCIE | ||
| J4-73 | PCIE_TX3P | CPU PCIE | ||
| J4-74 | GND | 0V | GROUND CONNECTING | |
| J4-75 | NPU_RESET_L | 1V8 | ||
| J4-76 | NPU_SLEEP_STATUS | 1V8 | SLEEP_STATUS/NPU_GPIO0_A4_d | |
| J4-77 | NPU_GPIO0_C7_Reserve | 1V8 | NPU_GPIO0_C7_d | |
| J4-78 | CPU_INT_NPU_DET | 1V8 | NPU_GPIO0_B0_u | |
| J4-79 | CPU_INT_NPU | 1V8 | ISP0_PRELIGHT_TRIG/ISP1_PRELIGHT_TRIG/GPIO1_A4_d | |
| J4-80 | GPIO1_C3_Reserve | 1V8 | PWM2/GPIO1_C3_d |
Key IC
RK3399Pro
Appearance And Structure
