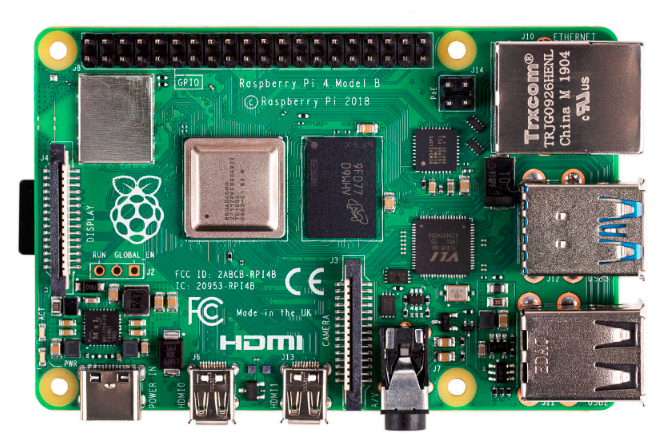

General Description
Broadcom BCM2711, Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.8GHz
    1GB, 2GB, 4GB or 8GB LPDDR4-3200 SDRAM (depending on model)
    2.4 GHz and 5.0 GHz IEEE 802.11ac wireless, Bluetooth 5.0, BLE
    Gigabit Ethernet
    2 USB 3.0 ports; 2 USB 2.0 ports.
    Raspberry Pi standard 40 pin GPIO header (fully backwards compatible with previous boards)
    2 × micro-HDMI® ports (up to 4kp60 supported)
    2-lane MIPI DSI display port
    2-lane MIPI CSI camera port
    4-pole stereo audio and composite video port
    H.265 (4kp60 decode), H264 (1080p60 decode, 1080p30 encode)
    OpenGL ES 3.1, Vulkan 1.0
    Micro-SD card slot for loading operating system and data storage
    5V DC via USB-C connector (minimum 3A*)
    5V DC via GPIO header (minimum 3A*)
    Power over Ethernet (PoE) enabled (requires separate PoE HAT)
    Operating temperature: 0 – 50 degrees C ambient

Features

General Parameters

Dimension	85mmL*56mmW*17mmH
Connection Mode	Board To Board
CPU	Broadcom BCM2711，1.5 GHz，64-bit，4Core，ARM Cortex-A72，1MB shared L2 cache
GPU	500MHz VideoCore Vi
Memory	2GB LPDDR4
Storage	EMMC 5.1 8G
Power Management
Supply Voltage	5.0V 1.25A
Operating System	Raspbian OS
Operating Temperature	0°C to +50°C

Absolute Maximum Ratings

Electrical Characteristics

Functional Block Diagram

Interface Description


Functional Pin Description

Key IC
    Broadcom BCM2711

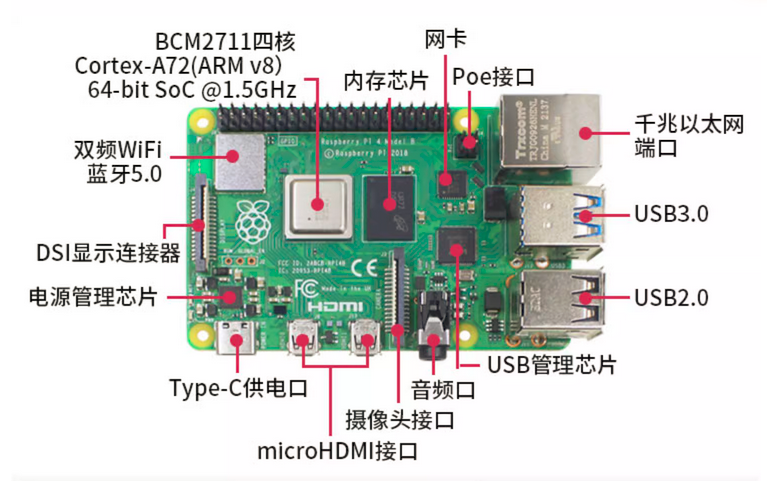

Appearance And Structure
