General Description 1GHz single-core CPU
512MB RAM
Mini HDMI® port
Micro USB OTG port
Micro USB power
HAT-compatible 40-pin header
Composite video and reset headers
CSI camera connector (v1.3 only)
Features
General Parameters
Dimension
|
66.0mmL*30.5mmW*5.0mmH
|
Connection Mode
|
Board To Board
|
CPU
|
Broadcom BCM2835 1GHz
|
GPU
|
Broadcom VideoCore IV, OpenGL ES 2.0, 1080p 30 h.264/MPEG-4 AVC HD Decoder
|
Memory
|
|
Storage
|
512MB
|
Power Management
|
|
Supply Voltage
|
5.0V 0.3A以上
|
Operating System
|
|
Operating Temperature
|
-20℃ to 80℃
|
Absolute Maximum Ratings
Electrical Characteristics
Functional Block Diagram
Interface Description
Functional Pin Description
Key IC Broadcom BCM2835

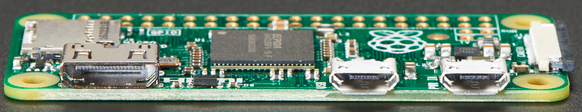

Appearance And Structure![图片.png](/Data/fuzqi/upload/image/20230925/6383123593605792633555500.png)
