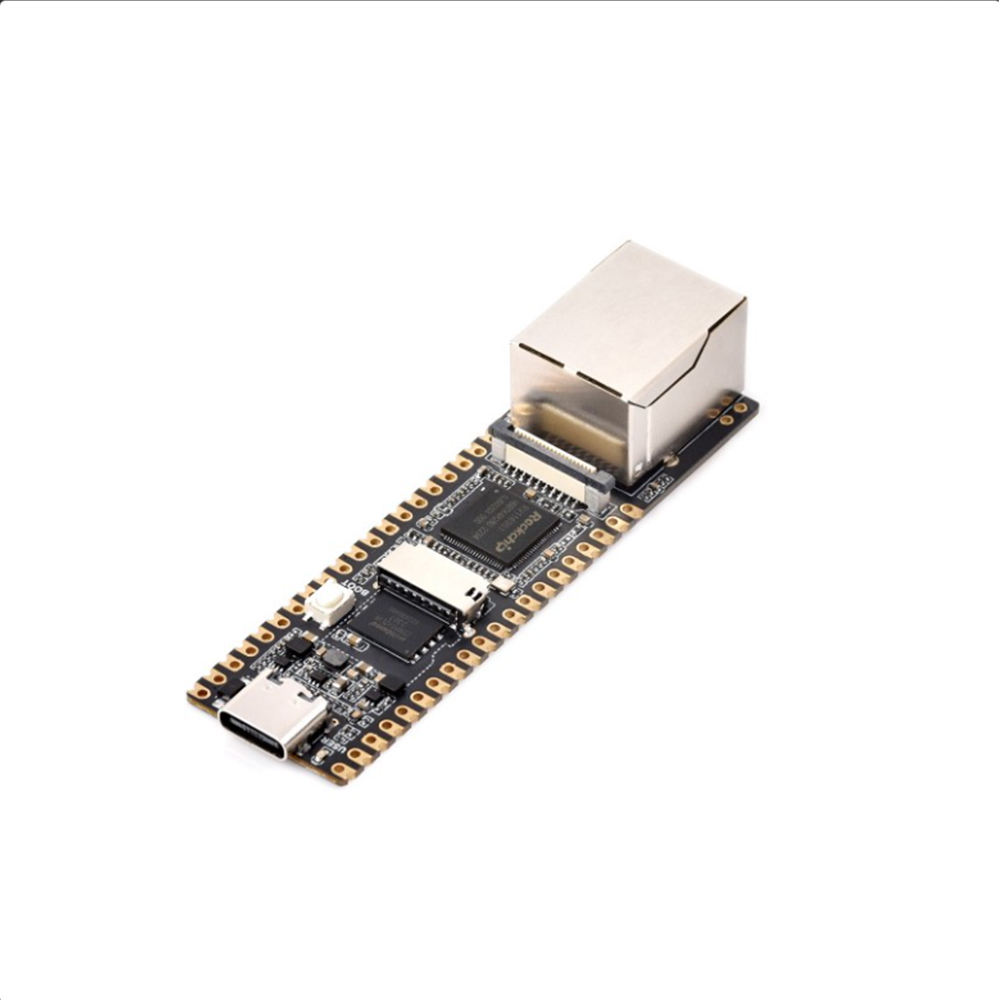

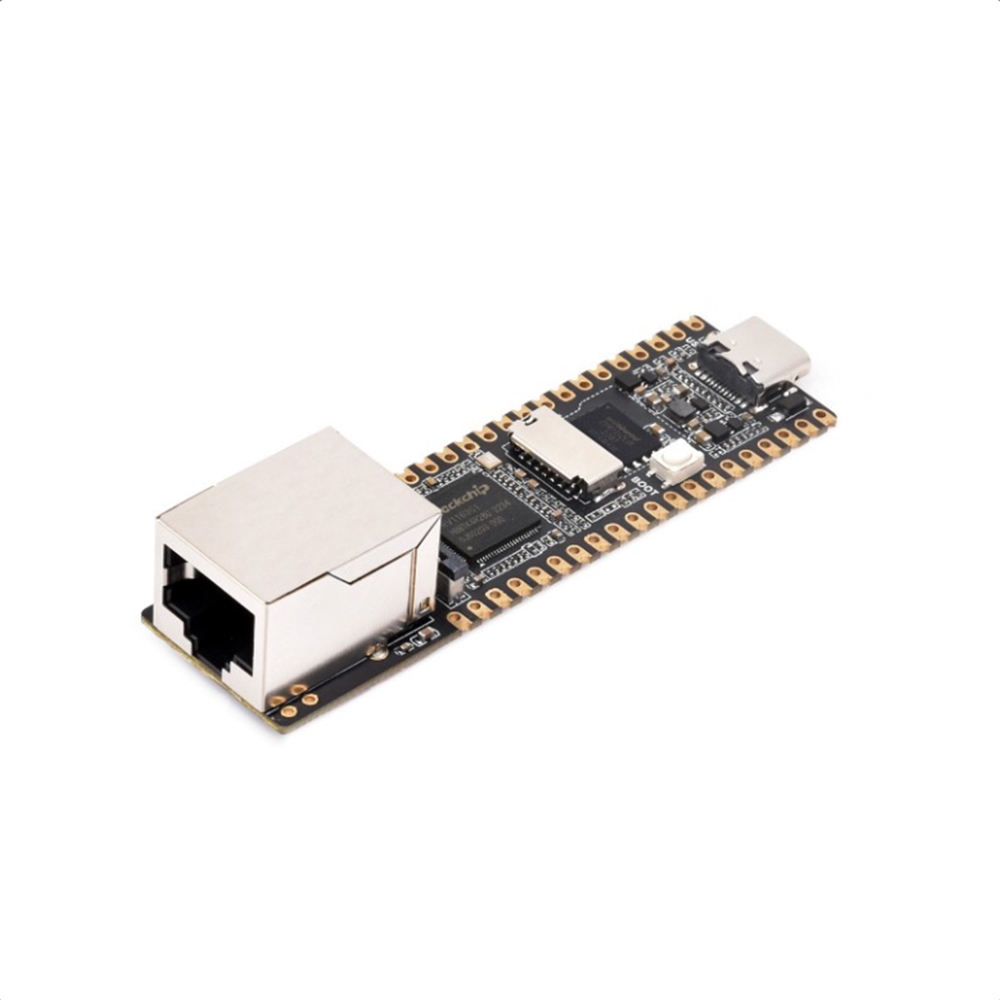

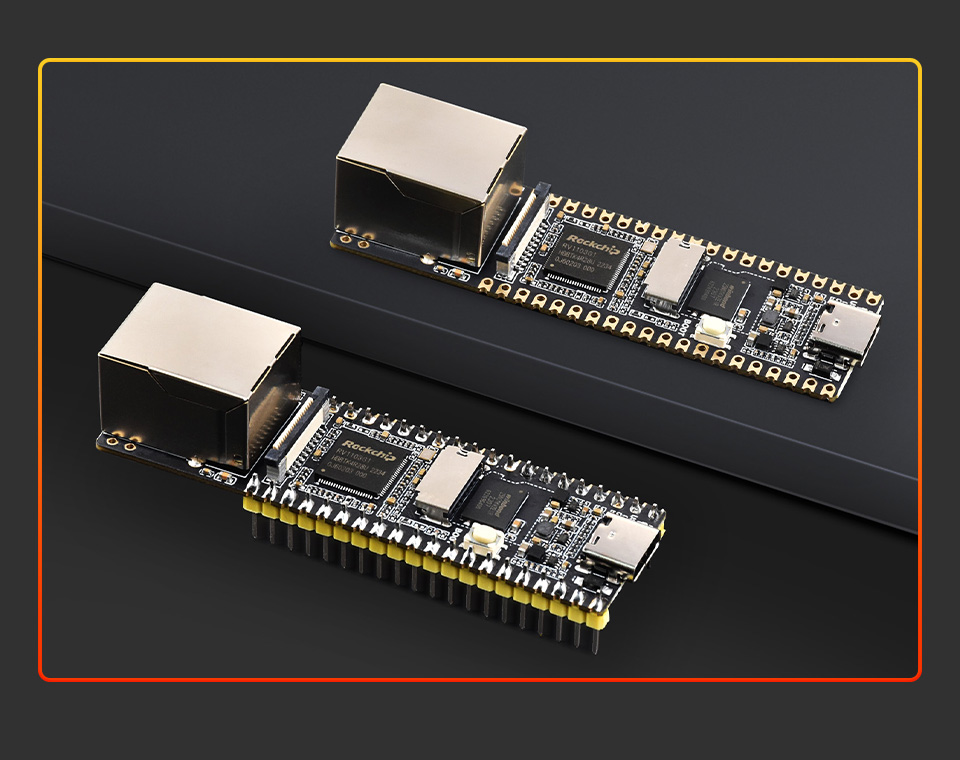

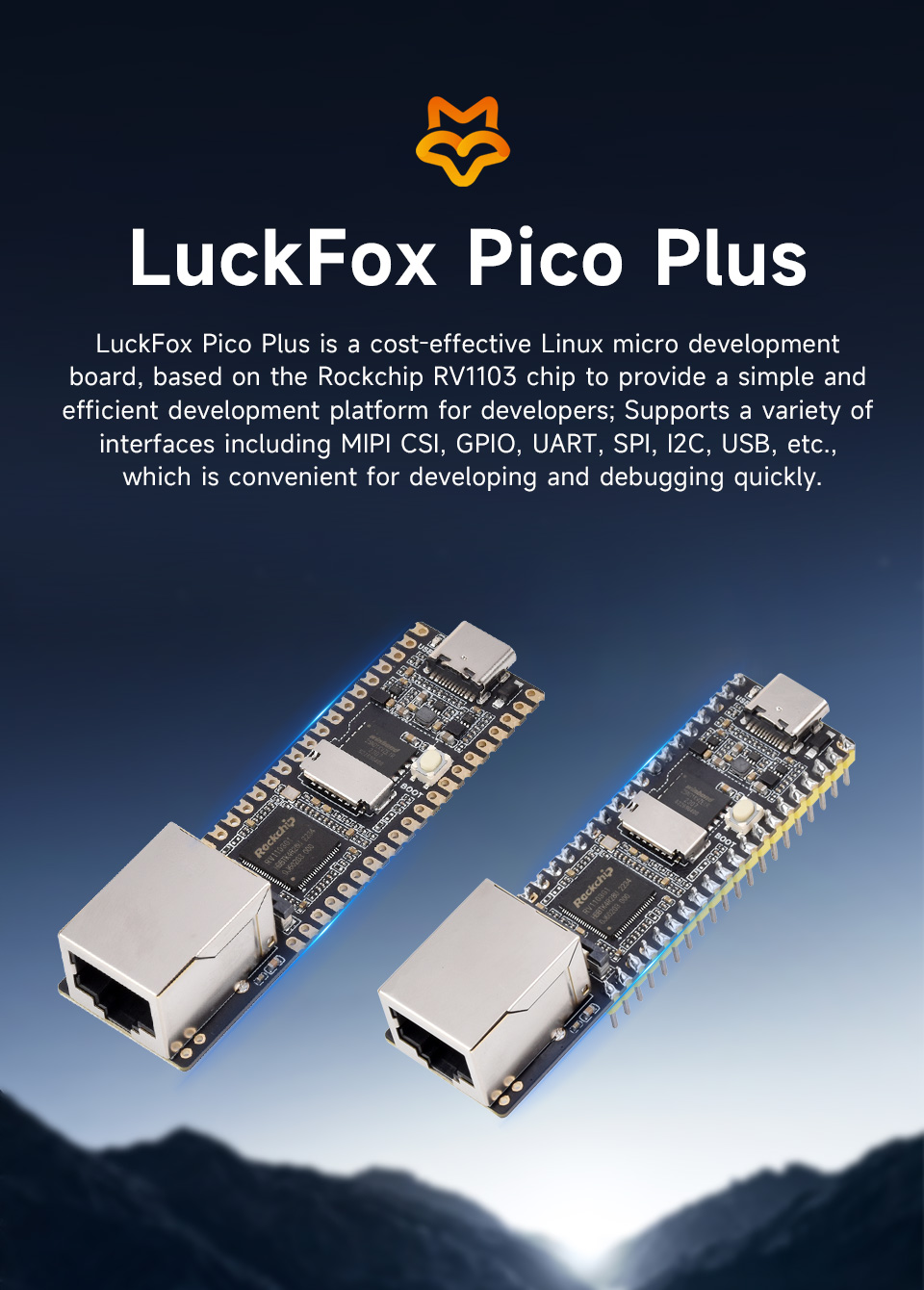

LuckFox Pico Plus RV1103 Linux Micro Development Board Integrates ARM Cortex-A7/RISC-V MCU/NPU/ISP Processors development board

Model number: LuckFox Pico Plus RV1103

Brand: LuckFox

Encapsulation: BTB

Inventory: 1000

Price: $9.99

Add to shopping cart

Product details
Quote Now

Key attributes

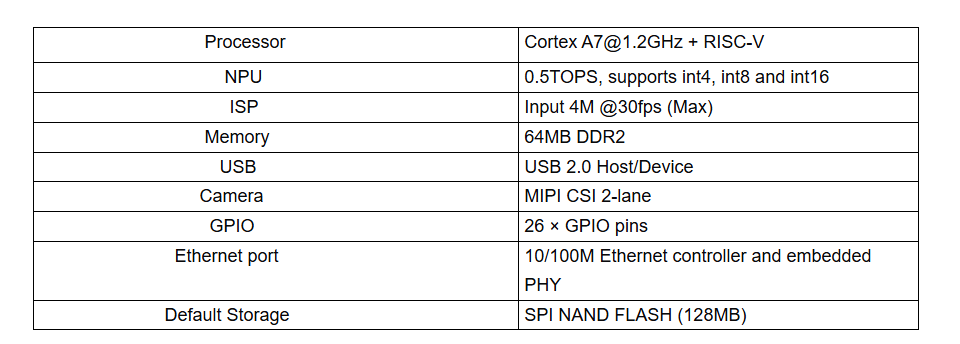

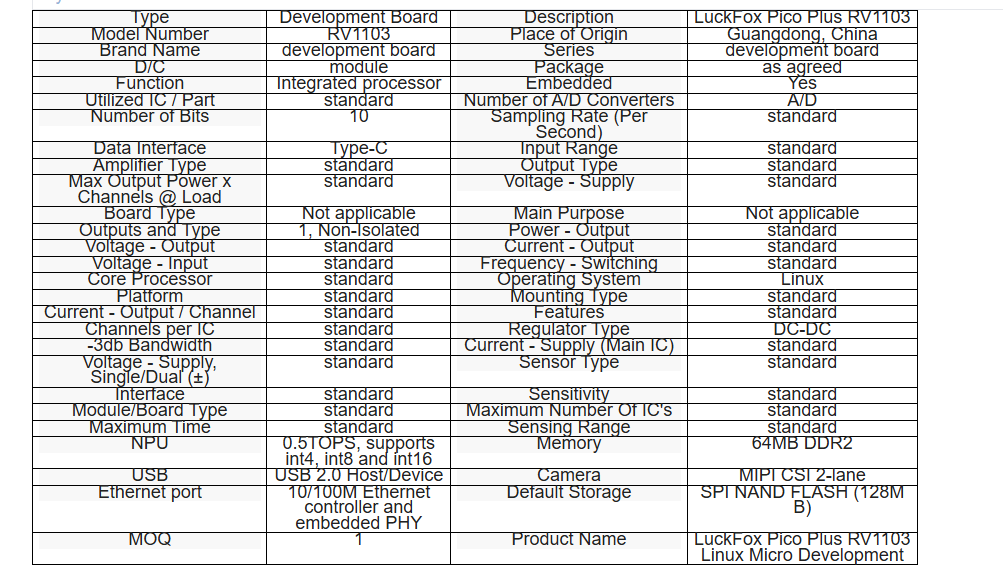

Specification

Product Description

详情_001.JPEG 详情_002.JPEG

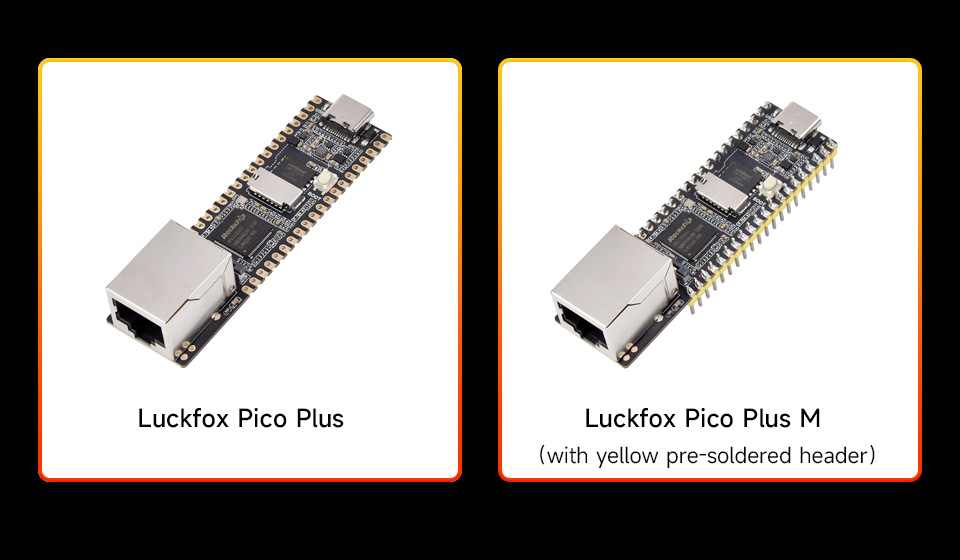

Pinheader Options

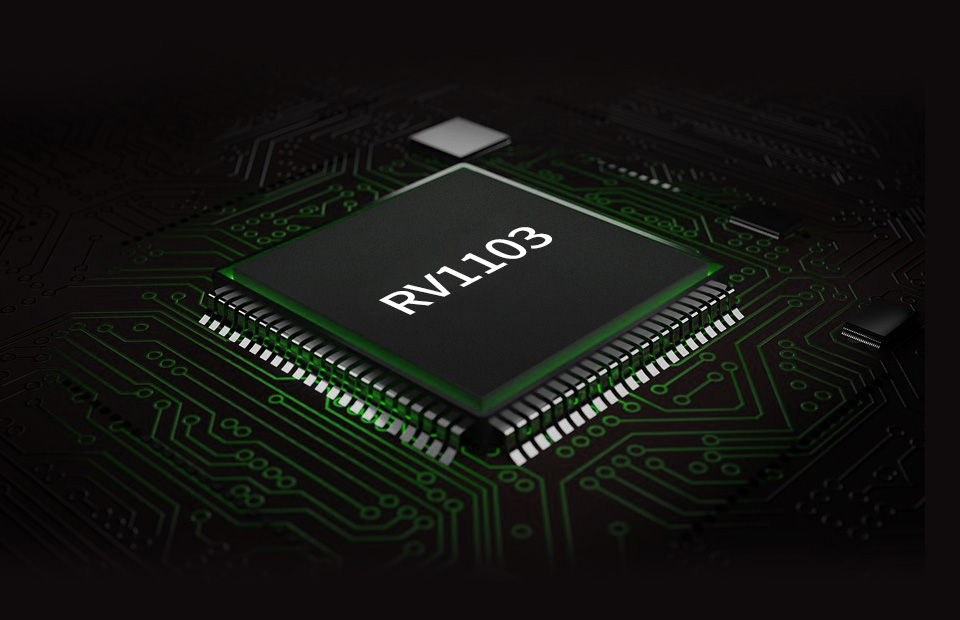

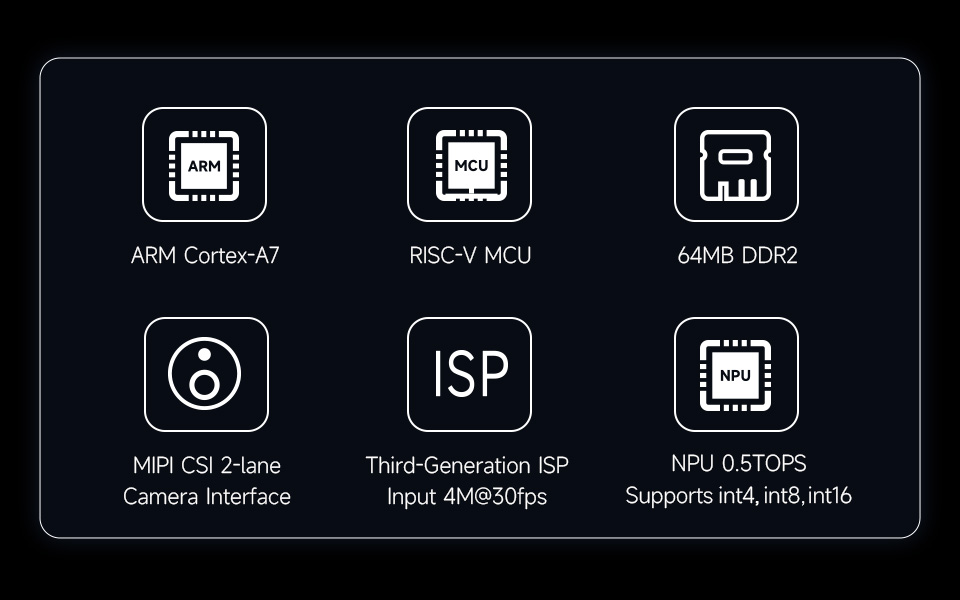

Highly Integrated And Powerful Performance
Integrates CPU, NPU, ISP And Other Processors


* Single-core ARM Cortex-A7 32-bit core with integrated NEON and FPU
* Built-in Rockchip self-developed 4th generation NPU, features high computing precision and supports int4, int8, and int16
hybrid quantization. The computing power of int8 is 0.5 TOPS, and up to 1.0 TOPS with int4
* Built-in self-developed third-generation ISP3.2, supports 4-Megapixel, with multiple image enhancement and correction
algorithms such as HDR, WDR, multi-level noise reduction, etc.
* Features powerful encoding performance, supports intelligent encoding mode and adaptive stream saving according to the scene,
saves more than 50% bit rate of the conventional CBR mode so that the images from camera are high-definition with smaller size,
double the storage space
* Built-in RISC-V MCU supports low power consumption and fast start-up, supports 250ms fast picture capture and loading AI model
library at the same time to realize face recognition "in one second"
* Built-in 16-bit DRAM DDR2, which is capable of sustaining demanding memory bandwidths
* Integrated with built-in POR, audio codec and MAC PHY

Easier To Develop

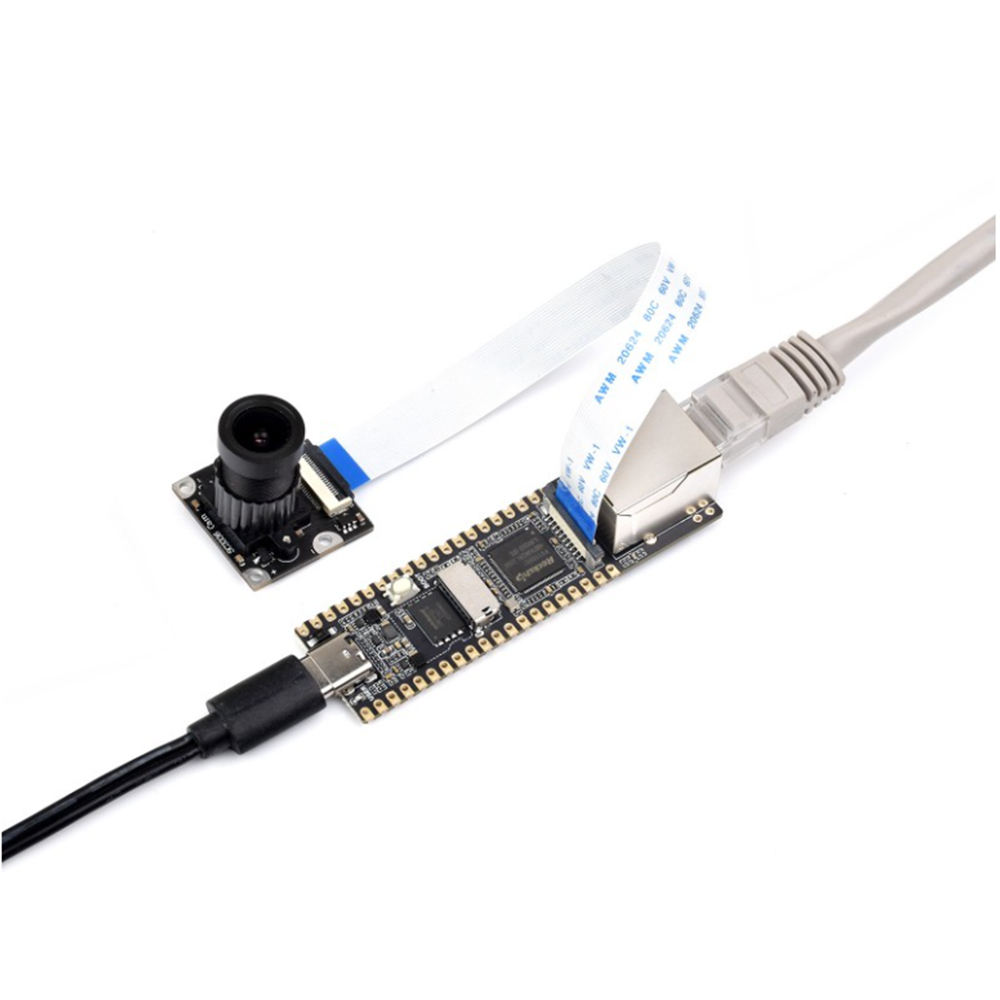

Integrates TF Card Slot, Camera Interface And Ethernet Port

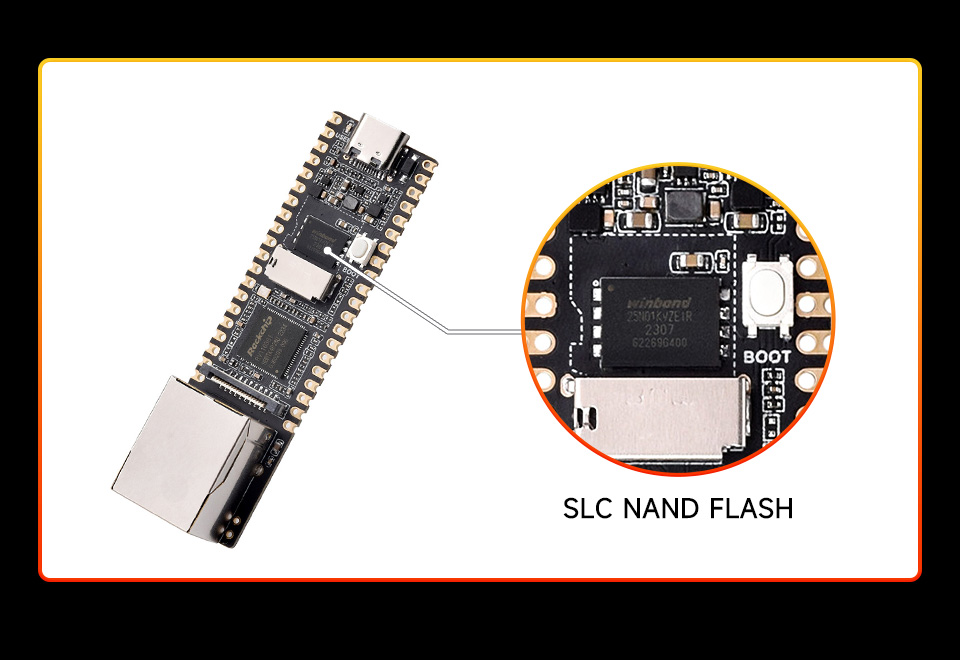

SLC NAND FLASH

For A Better User Experience

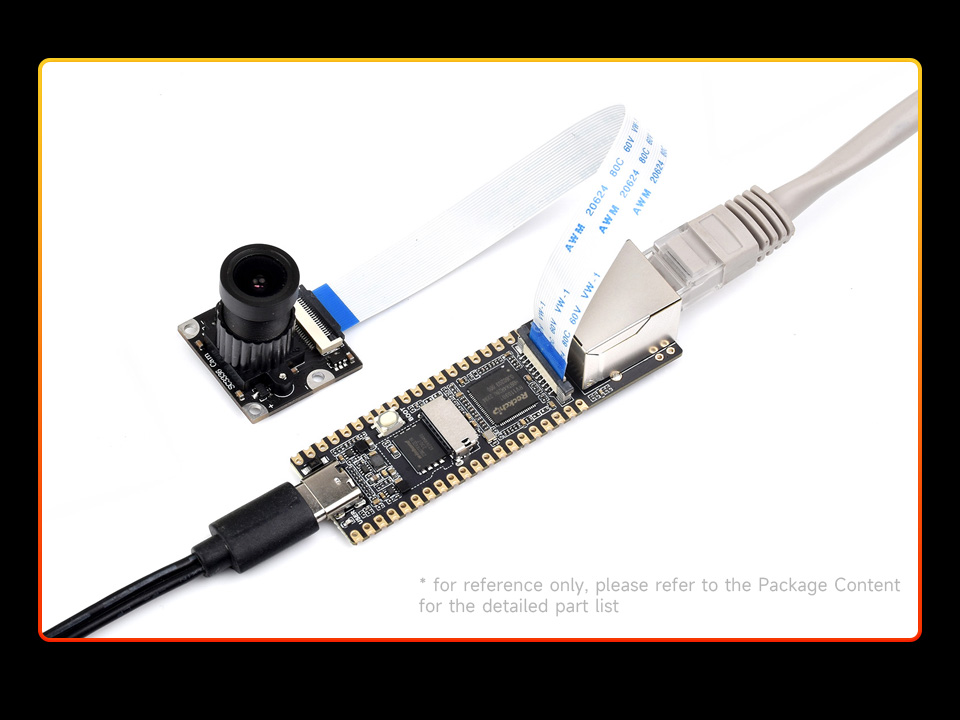

Application Example


Suitable For More Application Examples

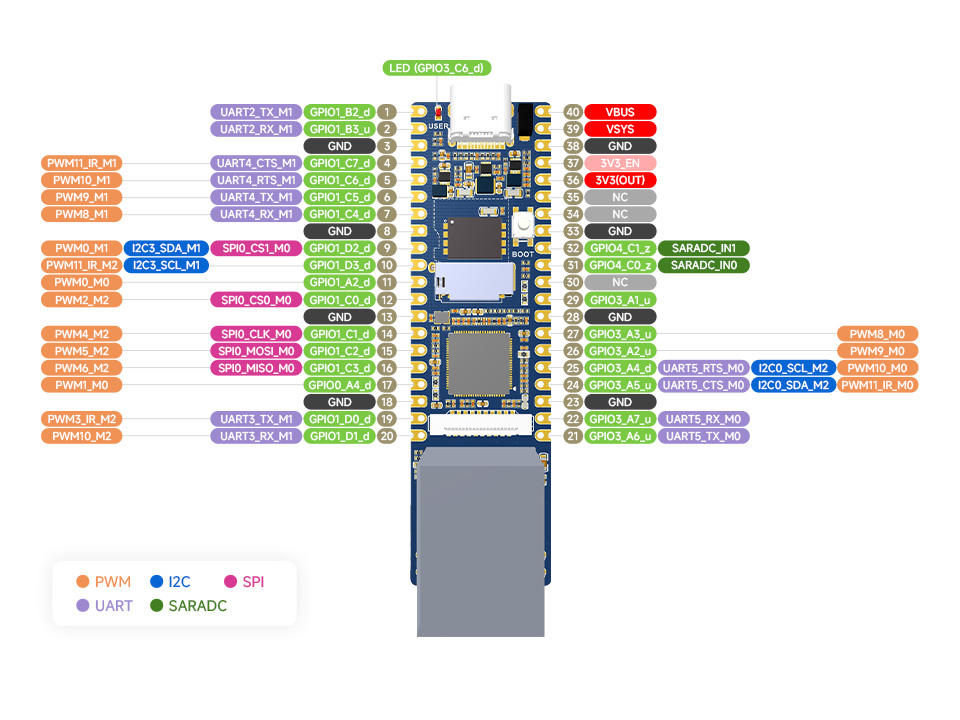

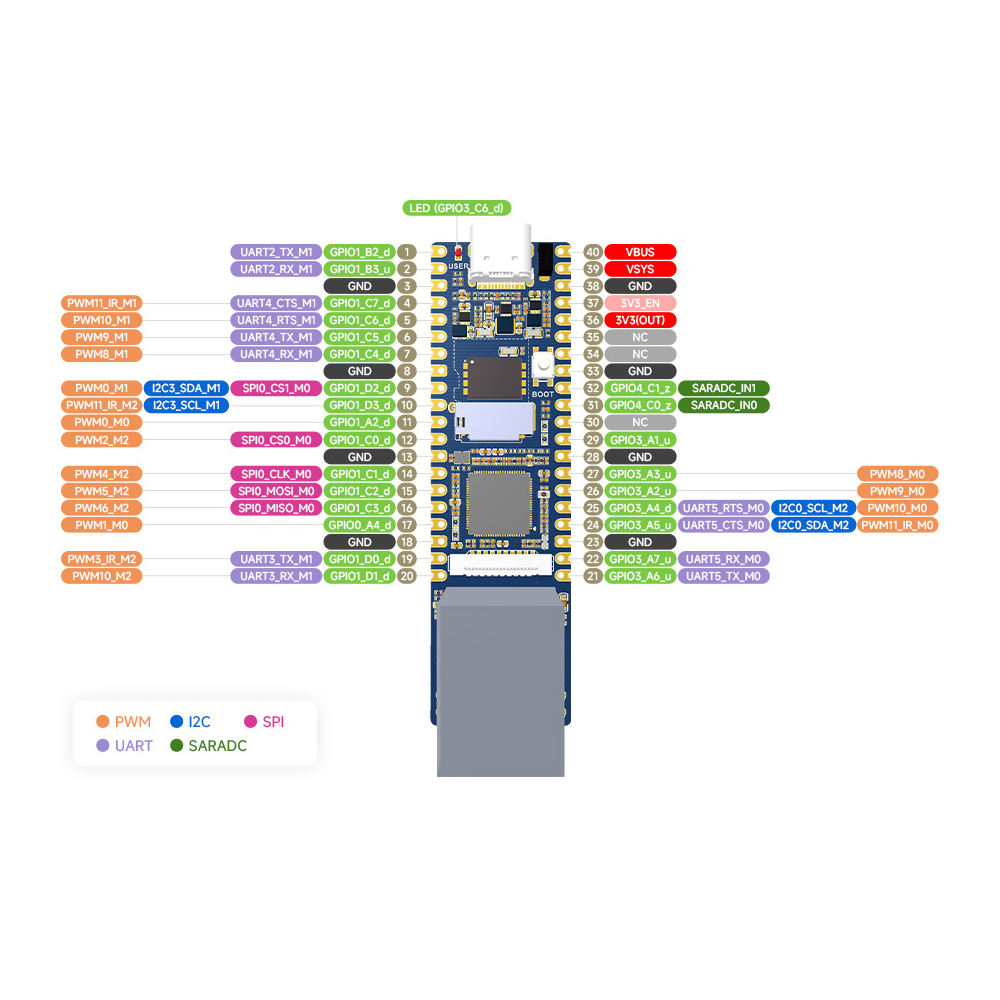

Pin Definition

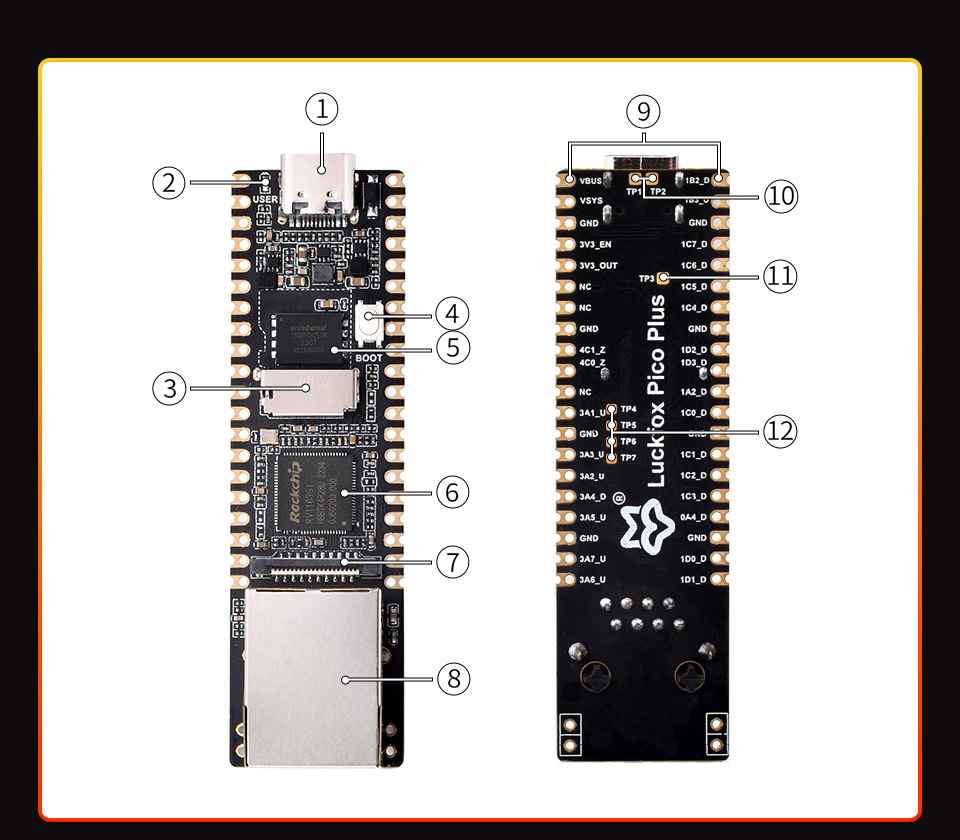

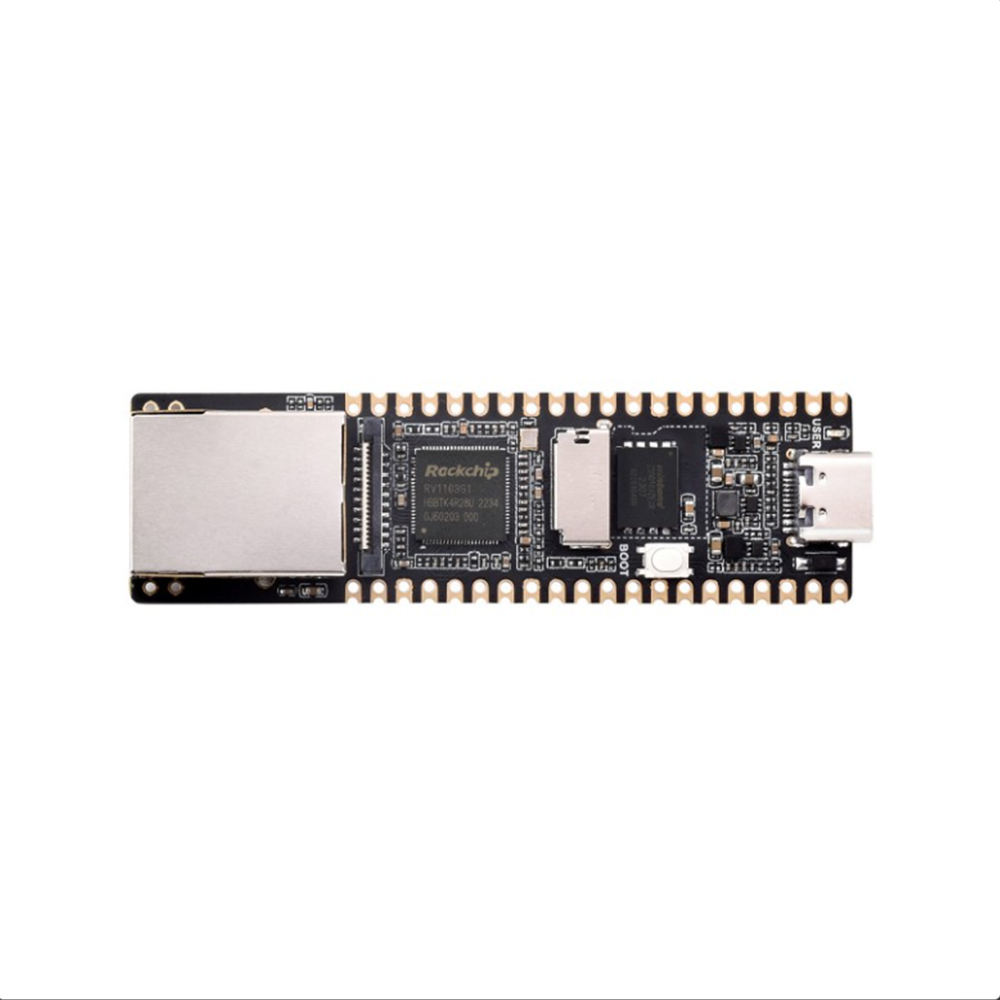

What's On Board


1. USB Type-C connector
for power supply and program burning
2. ACT-LED
3. TF card slot
4. BOOT button
Press it when powering on to enter download mode
5. W25N01KV
128MB SLC NAND FLASH
6. RV1103
Vision processor SoC with built-in ARM Cortex-A7 core
7. CSI camera interface
MIPI CSI 2-lane

8. RJ45 Ethernet port
9. GPIO header

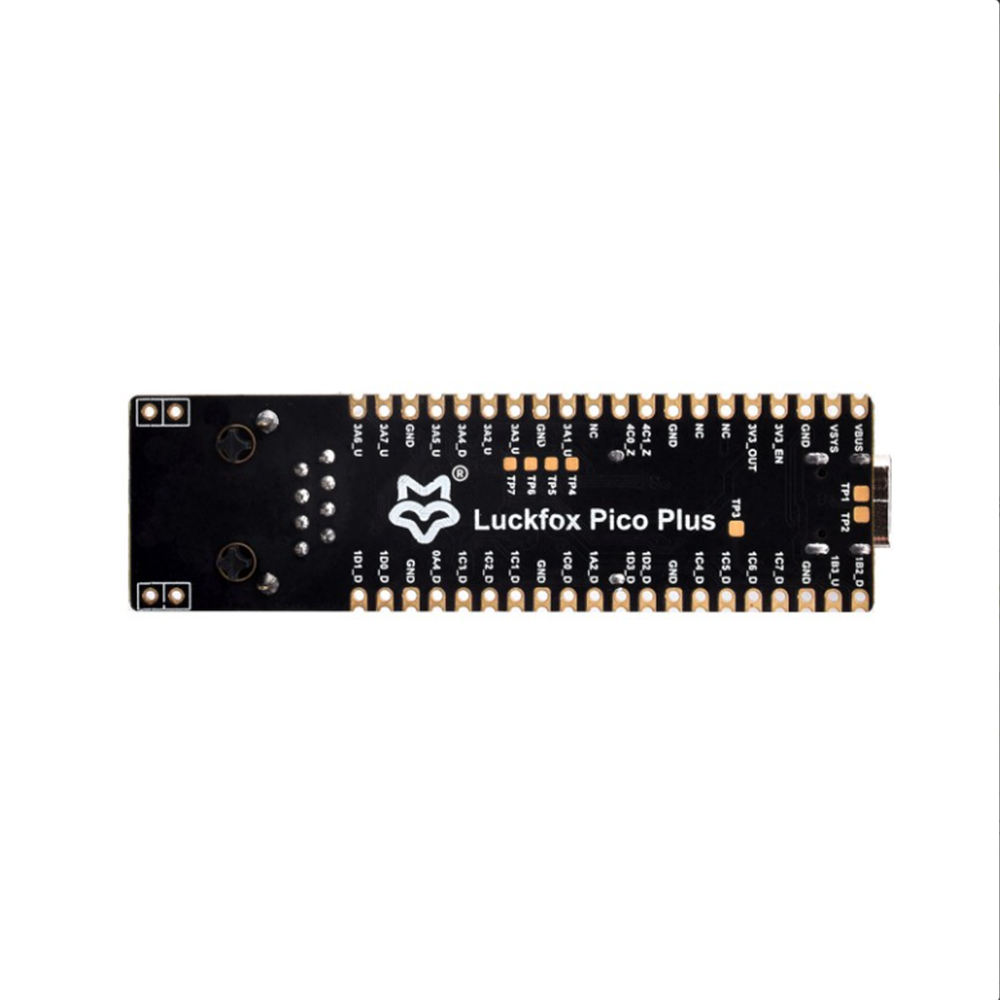

10. USB test pads
TP1: USB_N
TP2: USB_P
11. USB detection test pad
12. Microphone test pads
TP4: LINEOUT
TP5: MIC1P
TP6: MIC0P
TP7: MICBIAS
